Alert Rule Action

The alert rule action component gives you to access to parameters to define routing or configuration in alert rules for your service. When alert rules are triggered for a user, the configured service will receive issue alert and metric alert webhook events, with the specified settings for that service, to further route the alert.

Schema

{
  "elements": [
    {
      "type": "alert-rule-action",
      "title": <String>,
      "settings": {
        "type": "alert-rule-settings",
        "uri": <URI>,
        "required_fields": <Array<FormField>>,
        "optional_fields": <Array<FormField>>,
        "description": <String>
      }
    }
  ]
}

Attributes

• title - (Required) The title shown in the UI component.
• uri - (Required) Sentry will make a POST request to the URI when the User submits the form. If the services fails to process the request (status code >= 400), this component will bubble up the error to the User with the provided response text. Check out our URI Guidelines documentation for formatting help.
• required_fields - (Required) List of FormField components the User is required to complete.
• optional_fields - (Optional) List of FormField components the User may complete.
• description - (Optional) Text that will be displayed above the form. Limited to 140 characters.

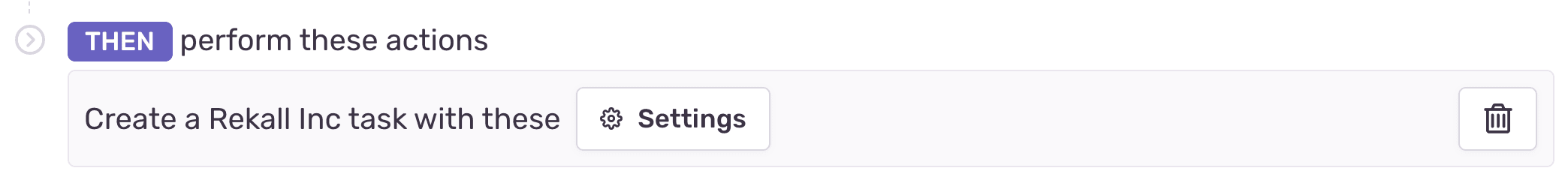

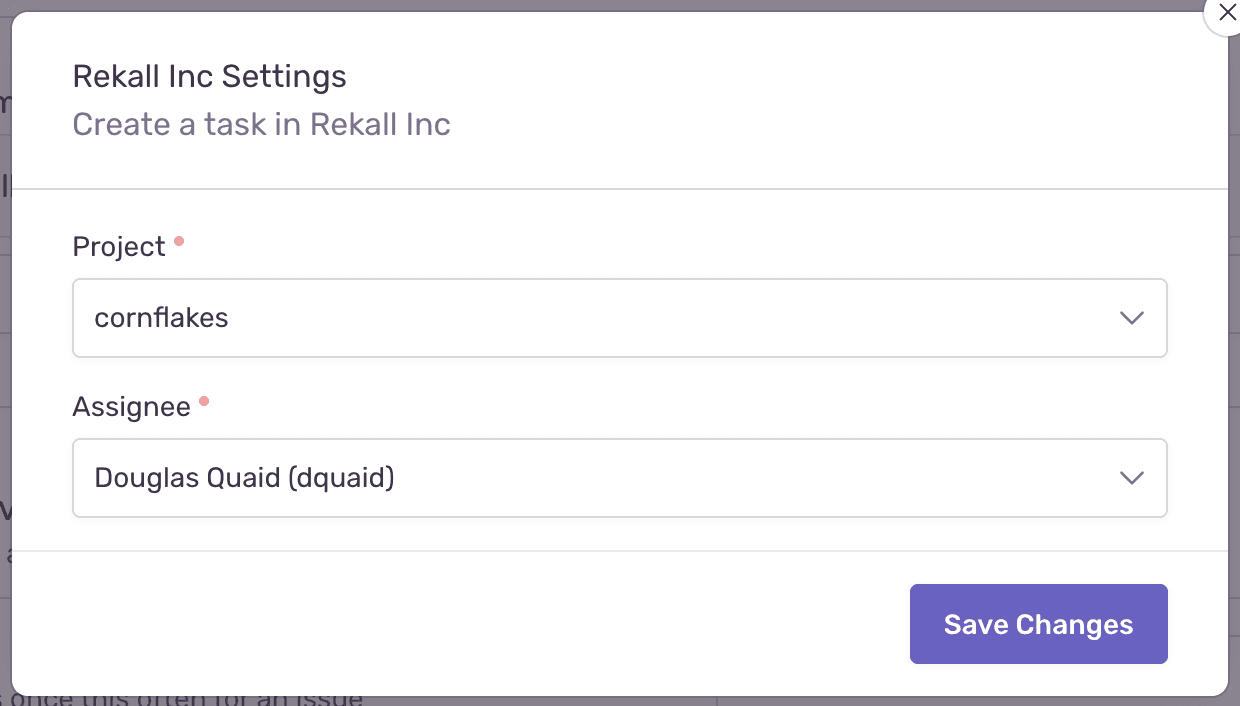

Example

{
  "elements": [
    {
      "type": "alert-rule-action",
      "title": "Create a Rekall Inc task",
      "settings": {
        "type": "alert-rule-settings",
        "uri": "/sentry/alert-rule",
        "required_fields": [
          {
            "type": "select",
            "label": "Project",
            "name": "project",
            "options": [["1", "cornflakes"]]
          },
          {
            "type": "select",
            "label": "Assignee",
            "name": "assignee",
            "uri": "/sentry/alert-rule/options/users/"
          }
        ]
      }
    }
  ]
}

Issue Alert Request Format

When an issue alert fires, your service will need to read the settings from the alert payload. The settings are in data.issue_alert.settings. Check out the full Issue Alert webhook documentation for more information.

{
  ...
  "data": {
    ...
    "issue_alert": {
      ...
      "settings": [
        {
          "name": "title",
          "value": "Ticket Title"
        },
        {
          "name": "description",
          "value": "Ticket Description"
        }
      ]
    }
  }
}

Metric Alert Request Format

When a metric alert fires, your service will need to read the settings from the alert payload. The settings in this example are nested in data.metric_alert.alert_rule.triggers[1].actions[0].settings. You will have to identify which trigger and action contains your settings based on the webhook type, so triggers[1] and actions[0] may not be accurate in your case. Check out the full Metric Alert webhook documentation for more information.

{
  ...
  "data": {
    ...
    "metric_alert": {
      ...
      "alert_rule": {
        ...
        "triggers": [
          ...
          {
            ...
            "actions": [
              {
                ...
                "settings": [
                  {
                    "name": "title",
                    "value": "Critical Trigger"
                  },
                  {
                    "name": "description",
                    "value": "Critical Description"
                  }
                ]
              }
            ]
          }
        ]
      }
    }
  }
}

Surfacing Errors

If a user setting up an alert rule action with your app tries to save an incorrect or malformed configuration, you can surface the errors to them directly in sentry.io by responding to the POST request with a JSON response in this shape:

{"message": "Channel no longer exists!"}

Alternately, if an error code (40x, 50x) is returned, we will show a generic error message. If an error occurs, the user will not be able to save the alert rule.
